PBxplore API cookbook — Visualize protein deformability

Note

This page is initialy a jupyter notebook. You can see a notebook HTML render of it or download the notebook itself.

Protein Blocks are great tools to study protein deformability. Indeed, if the block assigned to a residue changes between two frames of a trajectory, it represents a local deformation of the protein rather than the displacement of the residue.

The PBxplore API allows to visualize Protein Block variability throughout a molecular dynamics simulation trajectory.

from __future__ import print_function, division
from pprint import pprint
from IPython.display import Image, display
import matplotlib.pyplot as plt
import os

# The following line, in a jupyter notebook, allows to display
# the figure directly in the notebook. See <https://jupyter.org/>
%matplotlib inline

import pbxplore as pbx

Here we will look at a molecular dynamics simulation of the barstar. As we will analyse Protein Block sequences, we first need to assign these sequences for each frame of the trajectory.

# Assign PB sequences for all frames of a trajectory
trajectory = os.path.join(pbx.DEMO_DATA_PATH, 'barstar_md_traj.xtc')
topology = os.path.join(pbx.DEMO_DATA_PATH, 'barstar_md_traj.gro')
sequences = []
for chain_name, chain in pbx.chains_from_trajectory(trajectory, topology):
    dihedrals = chain.get_phi_psi_angles()
    pb_seq = pbx.assign(dihedrals)
    sequences.append(pb_seq)

Block occurences per position

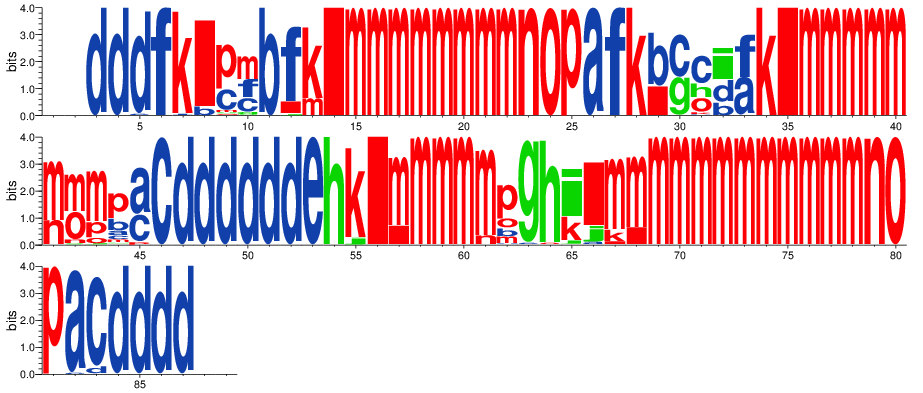

The basic information we need to analyse protein deformability is the count of occurences of each PB for each position throughout the trajectory. This occurence matrix can be calculated with the pbxplore.analysis.count_matrix() function.

count_matrix = pbx.analysis.count_matrix(sequences)

count_matrix is a numpy array with one row per PB and one column per position. In each cell is the number of time a position was assigned to a PB.

We can visualize count_matrix using Matplotlib as any 2D numpy array.

im = plt.imshow(count_matrix, interpolation='none', aspect='auto')
plt.colorbar(im)
plt.xlabel('Position')
plt.ylabel('Block')

<matplotlib.text.Text at 0x7fee1a0375d0>

Figure 1

PBxplore provides the pbxplore.analysis.plot_map() function to ease the visualization of the occurence matrix.

pbx.analysis.plot_map('map.png', count_matrix)
!rm map.png

Figure 2

The pbxplore.analysis.plot_map() helper has a residue_min and a residue_max optional arguments to display only part of the matrix. These two arguments can be pass to all PBxplore functions that produce a figure.

pbx.analysis.plot_map('map.png', count_matrix,
                      residue_min=60, residue_max=70)
!rm map.png

Figure 3

Note that matrix in the the figure produced by pbxplore.analysis.plot_map() is normalized so as the sum of each column is 1. The matrix can be normalized with the pbxplore.analysis.compute_freq_matrix().

freq_matrix = pbx.analysis.compute_freq_matrix(count_matrix)

im = plt.imshow(freq_matrix, interpolation='none', aspect='auto')
plt.colorbar(im)
plt.xlabel('Position')
plt.ylabel('Block')

<matplotlib.text.Text at 0x7fee19c9e890>

Figure 4

Protein Block entropy

The \(N_{eq}\) is a measure of variability based on the count matrix calculated above. It can be computed with the pbxplore.analysis.compute_neq() function.

neq_by_position = pbx.analysis.compute_neq(count_matrix)

neq_by_position is a 1D numpy array with the \(N_{eq}\) for each residue.

plt.plot(neq_by_position)
plt.xlabel('Position')
plt.ylabel('$N_{eq}$')

<matplotlib.text.Text at 0x7fee18cee790>

Figure 5

The pbxplore.analysis.plot_neq() helper ease the plotting of the \(N_{eq}\).

pbx.analysis.plot_neq('neq.png', neq_by_position)
!rm neq.png

Figure 6

The residue_min and residue_max arguments are available.

pbx.analysis.plot_neq('neq.png', neq_by_position,
                      residue_min=60, residue_max=70)
!rm neq.png

Figure 7
